Reducing an ERM to a relational scheme

Create a relational database scheme using the following conceptional data scheme (ERM - Entity Relationship Model) using the rules you here learned in this unit. Primary keys should be marked as underlined and foreign keys italic.
Publish your solution as a Word- or PDF-document on the discussion board. Check out the solutions of the other students and comment them. Any problems with this exercise can also be published on the discussion board. The solutions and questions will be checked by a tutor and general feedback published.

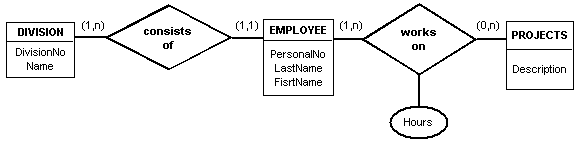

A conceptional model (ERM)A conceptional model (ERM)
