Individual spatial properties of Aeral Features

Areal features such as forest land, agricultural land, park and land parcels etc. can be represented as the series of single x, y values as a closed chain in object mode or a set of contiguous grid cells with respect to row and columns in image (raster) mode. The location (position), size (area, perimeter) and shape (compactness) are the geometric properties of areal (polygon) features.

Examples

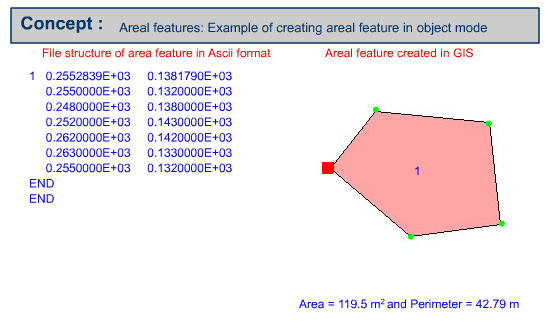

Example of creating an areal feature in object modeExample of creating an areal feature in object mode

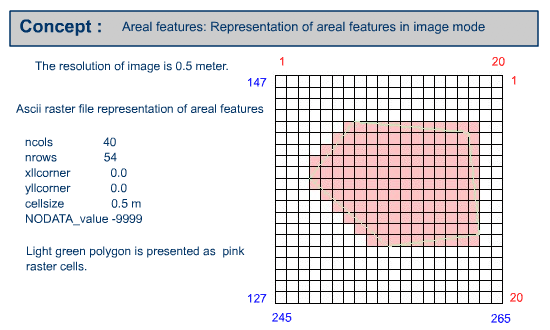

Example of creating an areal feature in image modeExample of creating an areal feature in image mode

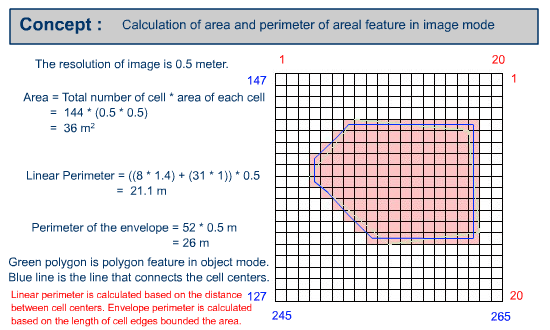

Example of calculating area and perimeter in image modeExample of calculating area and perimeter in image mode

Calculate area and perimeter in object mode

1. Create a polygon feature in object mode based on the following table, using available GIS system at your lab. Find out the area and perimeter values calculated by the GIS system.

Point X(m) Y(m)
1 248 138
2 252 143
3 262 142
4 263 133
5 255 132
6 250 129

2. Calculate the area and perimeter of the created polygon using GIS. 3. Calculate the perimeter and area manually based on the created polygon feature.

Calculate the area and perimeter in image mode

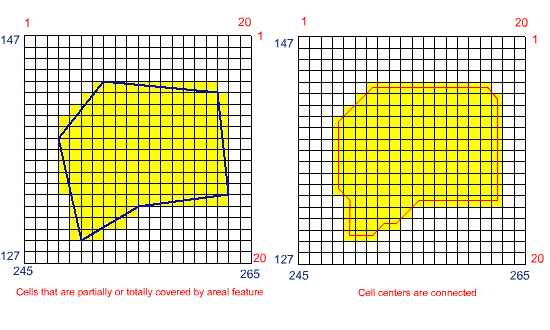

Calculate the area, perimeter of the envelope and linear perimeter in image mode at 1 meter grid cell resolution based on the following presentation.
